Ground Anchors Kit

Overview
Most of the ground anchors on the market seem to be very bulky and heavy, so we decided to try and make something a bit more compact and lighter. We are also considering the possibility that if (removable) attachment points were fabricated for the sand-ladders they may also work as “dead man snow/sand anchors” or large ground anchor plates.

Items in “grey” are still to do.
Items in “mauve” needs to be fixed, replaced, or upgraded or we need more.
Items in “brown” are under construction or on order.
Items in “green” are almost completed.
Items in “black” completed.


Ground anchor plates,
(
x4 two sets, 2 plates still to complete,  plate fabrication).
Ground anchor pins (x12), (6 per anchor-plate set).
Lightweight ground anchor pins, (under construction).
Dead-man groundsheet attachment for anchor plates, (under construction).

Removable dead man snow anchors attachment points for the sand-ladders.
Removable ground anchor plate attachment points for the sand-ladders.
Ground anchor pin extractor,  (Mk 1, too heavy).
      (Attaches to the 3/4″ breaker bar permanently stored in the van).
Ground anchor pin extractor, (Mk 2, needs to be lightweight).

Additional necessary equipment.
Sledgehammer, (see recovery tools).
Soft or hard shackles, (see pulleys & shackles.).
Pulleys, (Pulleys & shackles).
Haling ropes. (Ropes, straps & bars).

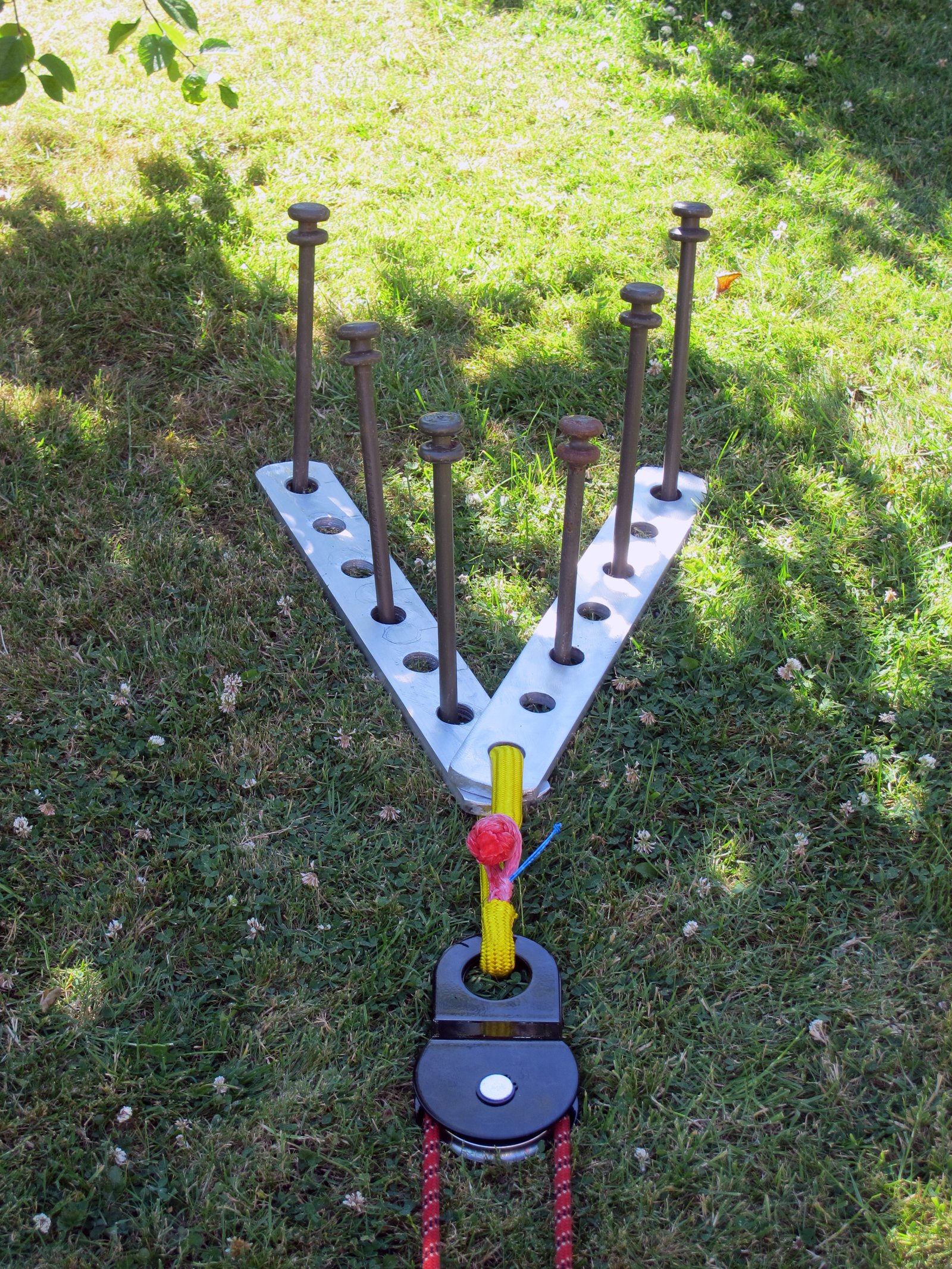

Ground anchor plates in use. (plate fabrication).


Ground pins.

Lightweight ground anchor pins, (under construction).

Dead-man groundsheet attachment for anchor plates, (under construction).

Removable dead man snow anchors attachment points for the sand ladders.

Removable ground anchor plate attachment points for the sand ladders.

Ground pin extractor(MK1).
      (Attaches to the 3/4″ breaker bar permanently stored in the van).

Ground anchor pin extractor, (Mk 2, needs to be lightweight).

Sledgehammer, (see recovery tools).

Soft shackles, (see pulleys & shackles.).



More info Photos and full write-ups to follow soon.
